What is the “state of health” of roads?

How do we find out where, how and how much it costs to take action?

ZUM55 is an integrated platform for carrying out high-performance objective and scientific surveys on road networks.

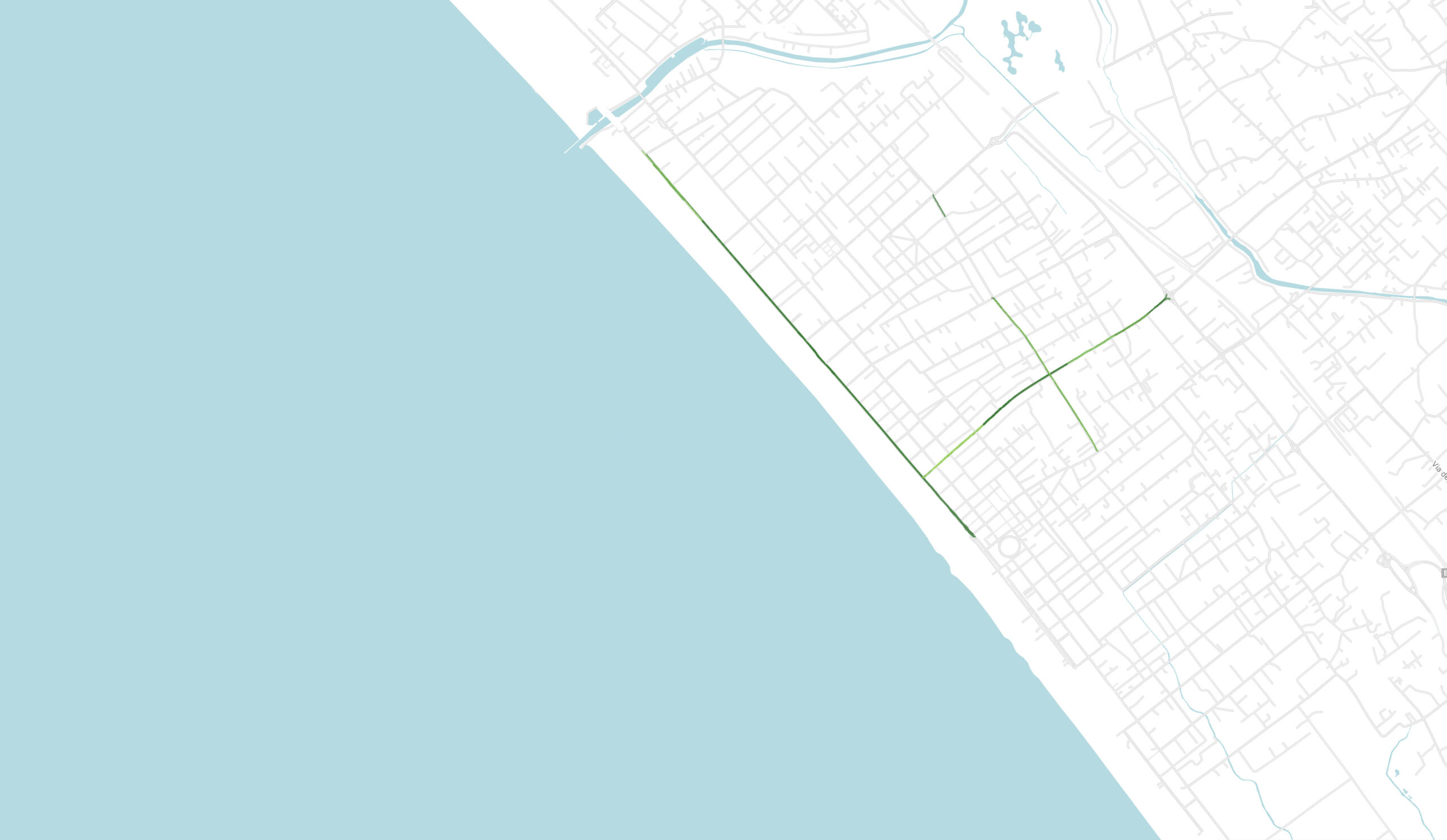

The scan is re-processed on a simple Google map that digitises the data and indications of the technical departments, facilitating the scheduling of the right maintenance work and the correct planning of investments.

The ZUM55 multi-service digital platform for the world of infrastructureRoad surveys

An integrated platform for public authorities
and public and private companies
https://www.zum55.it/en/wp-content/uploads/sites/2/2022/07/ZUM55_orizzontale.png

What is the “state of health” of roads?

How do we find out where, how and how much it costs to take action?

ZUM55 is an integrated platform for carrying out high-performance objective and scientific surveys on road networks.

The scan is re-processed on a simple Google map that digitises the data and indications of the technical departments, facilitating the scheduling of the right maintenance work and the correct planning of investments.

Map version

Four parameters for assessing the criticalities of pavements
  • ROUGHNESS
  • MACROTEXTURE
  • RUTTING
  • SURVEY

ROUGHNESS INDEX

IRI (International Roughness Index)

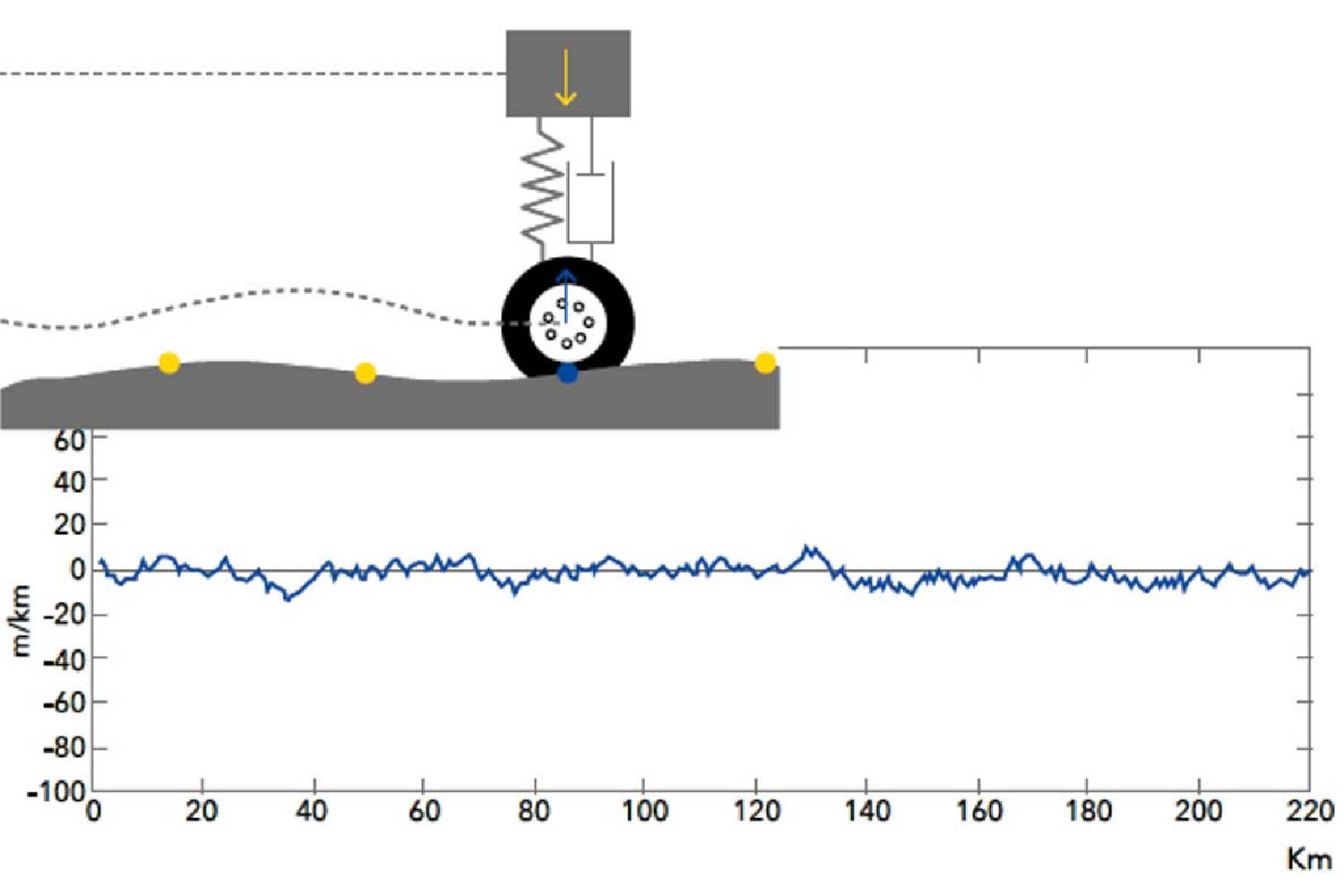

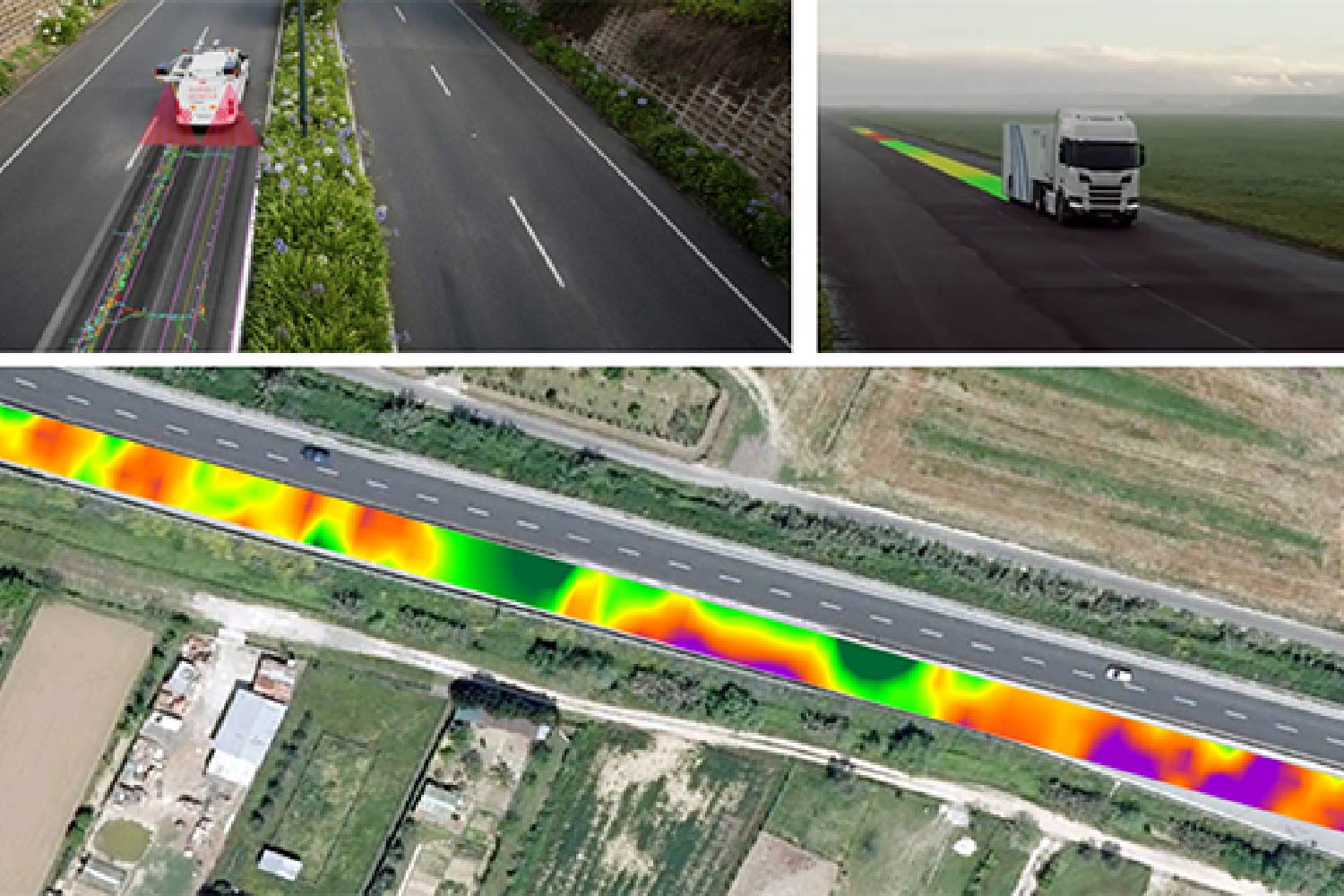

Measures the comfort perceived by those travelling along the infrastructure.

ZUM55-rilevamento-dati-iri-3
ZUM55-rilevamento-dati-iri-2
ZUM55-rilevamento-dati-iri-1

MACROTEXTURE

ETD (Estimated Texture Depht)

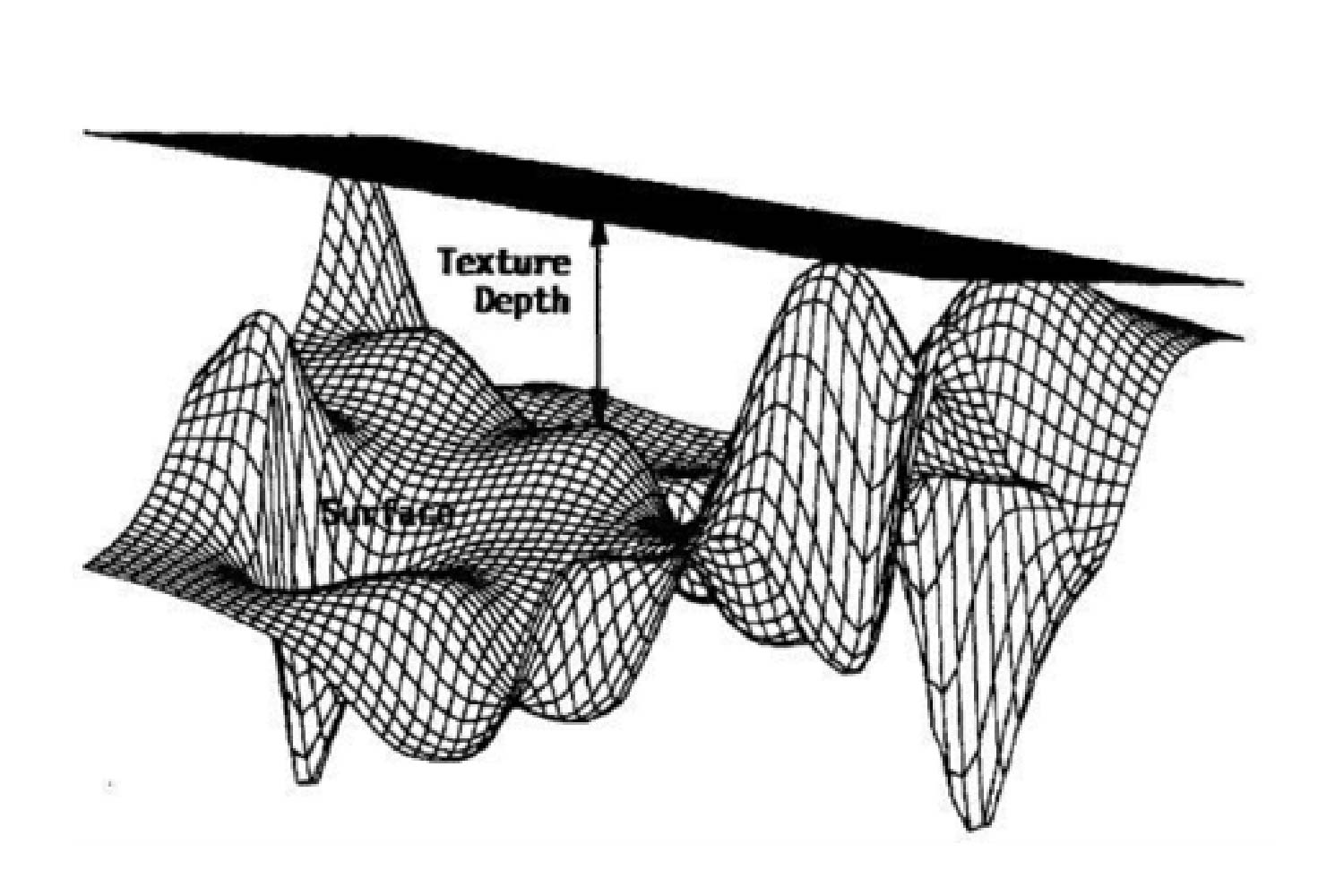

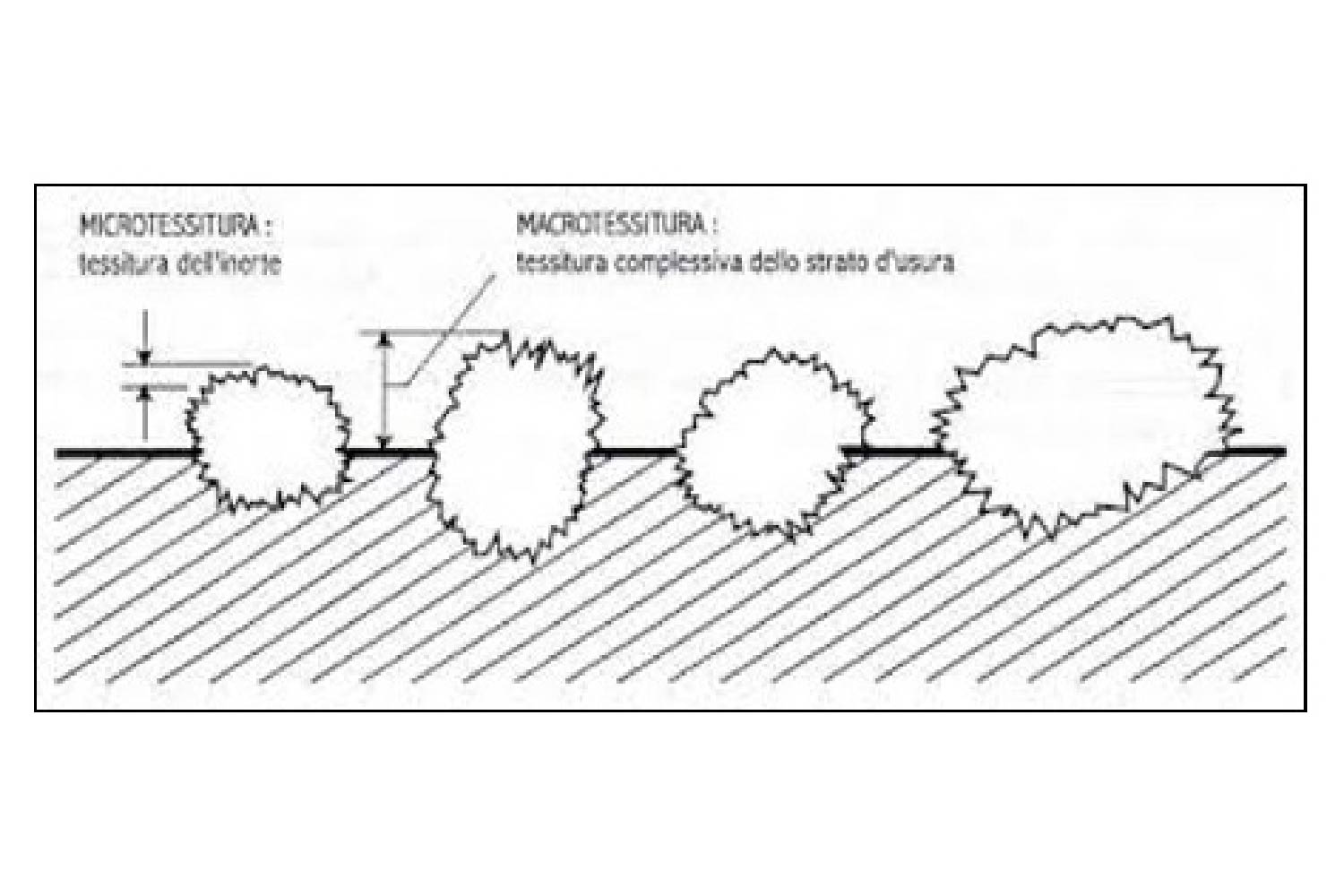

The set of granular asperities that characterise the road surface: these affect surface water drainage, rolling noise and grip.

ZUM55-rilevamento-dati-macrotessitura-1
ZUM55-rilevamento-dati-macrotessitura-2

RUTTING

RD (Rut Depht)

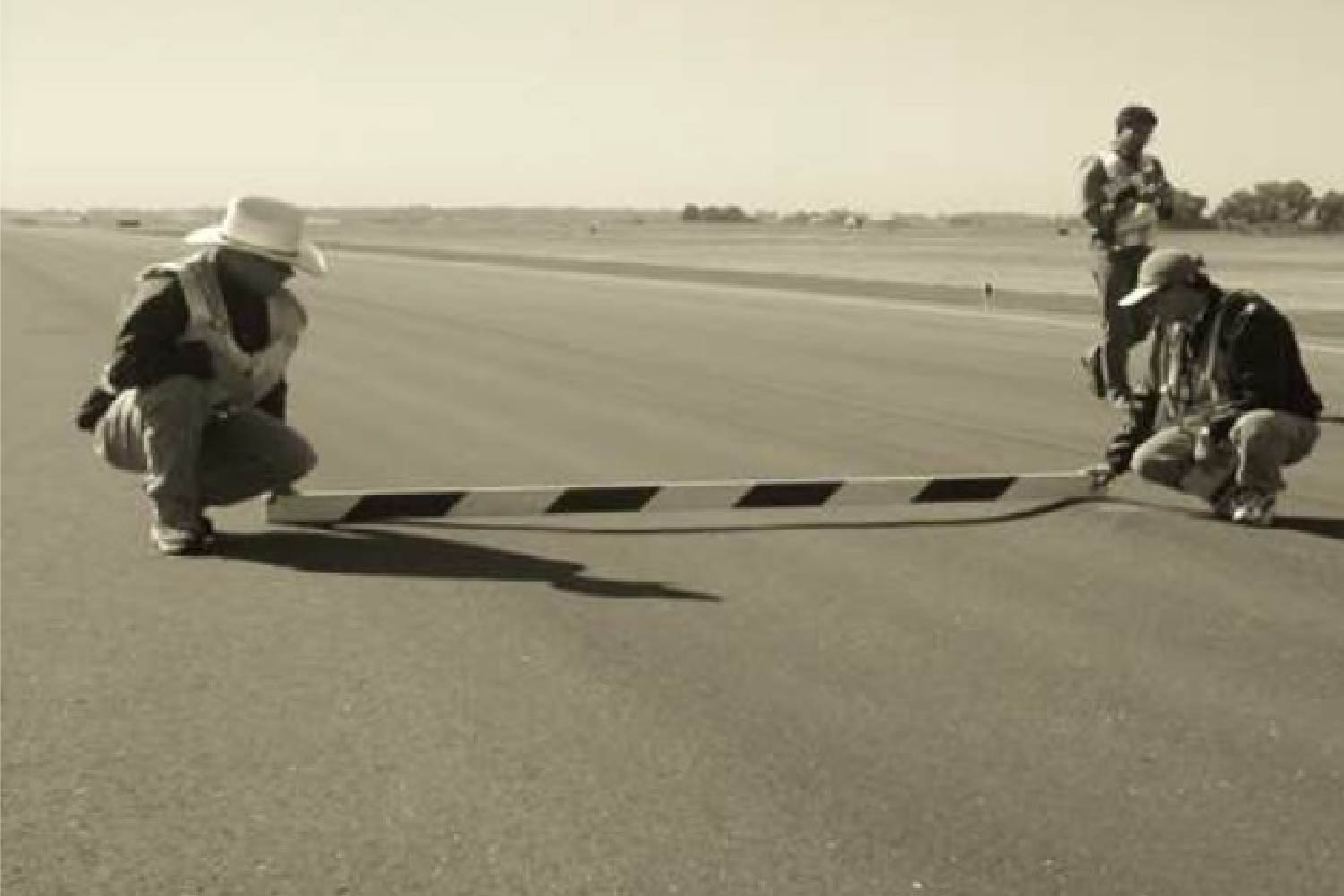

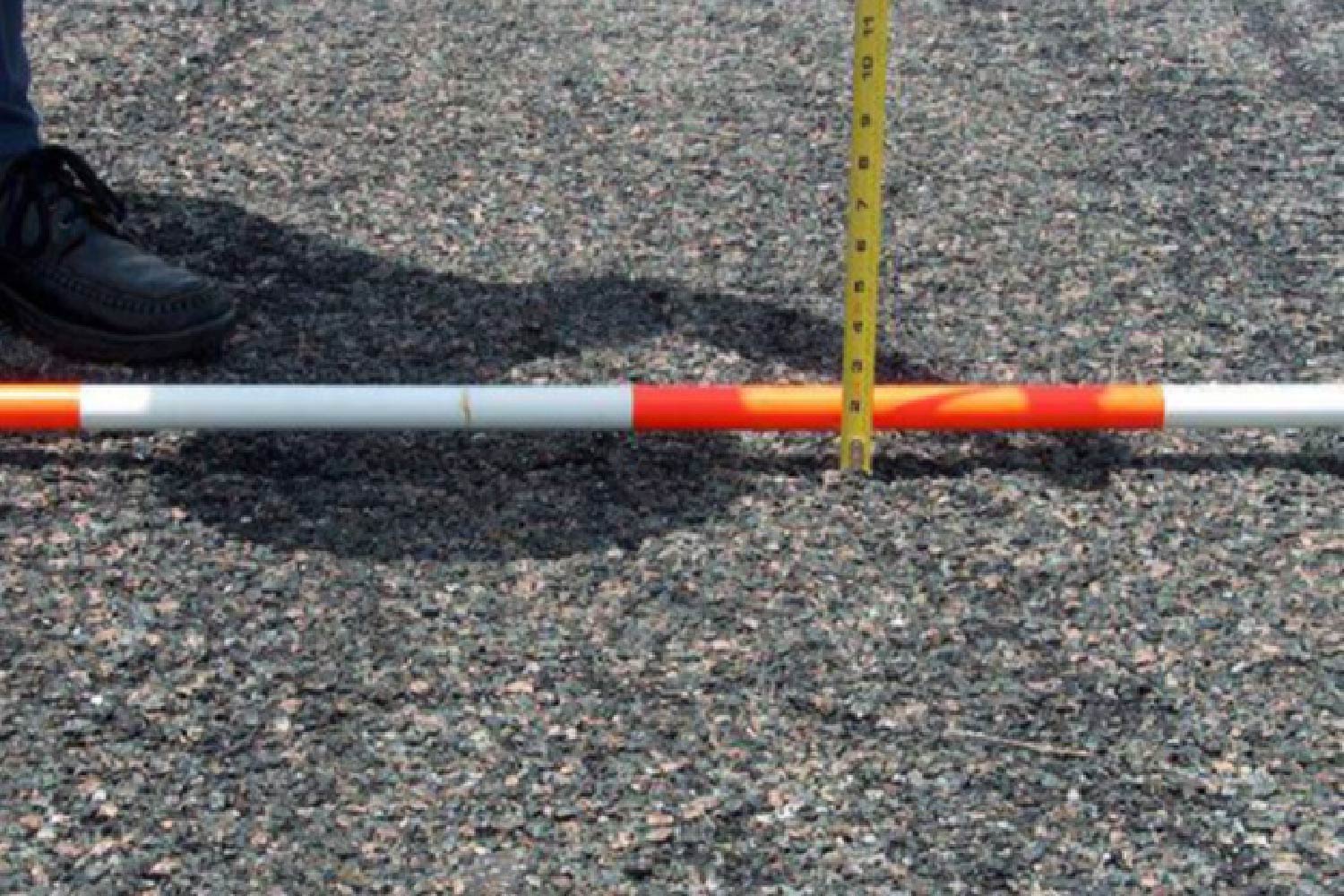

Indicates the depth of the rut: takes the form of a longitudinal depression in the area affected by the wheel tracks.

ZUM55-rilevamento-dati-ormaiamento-1
ZUM55-rilevamento-dati-ormaiamento-2

PAVEMENT CONDITIONS

PCI

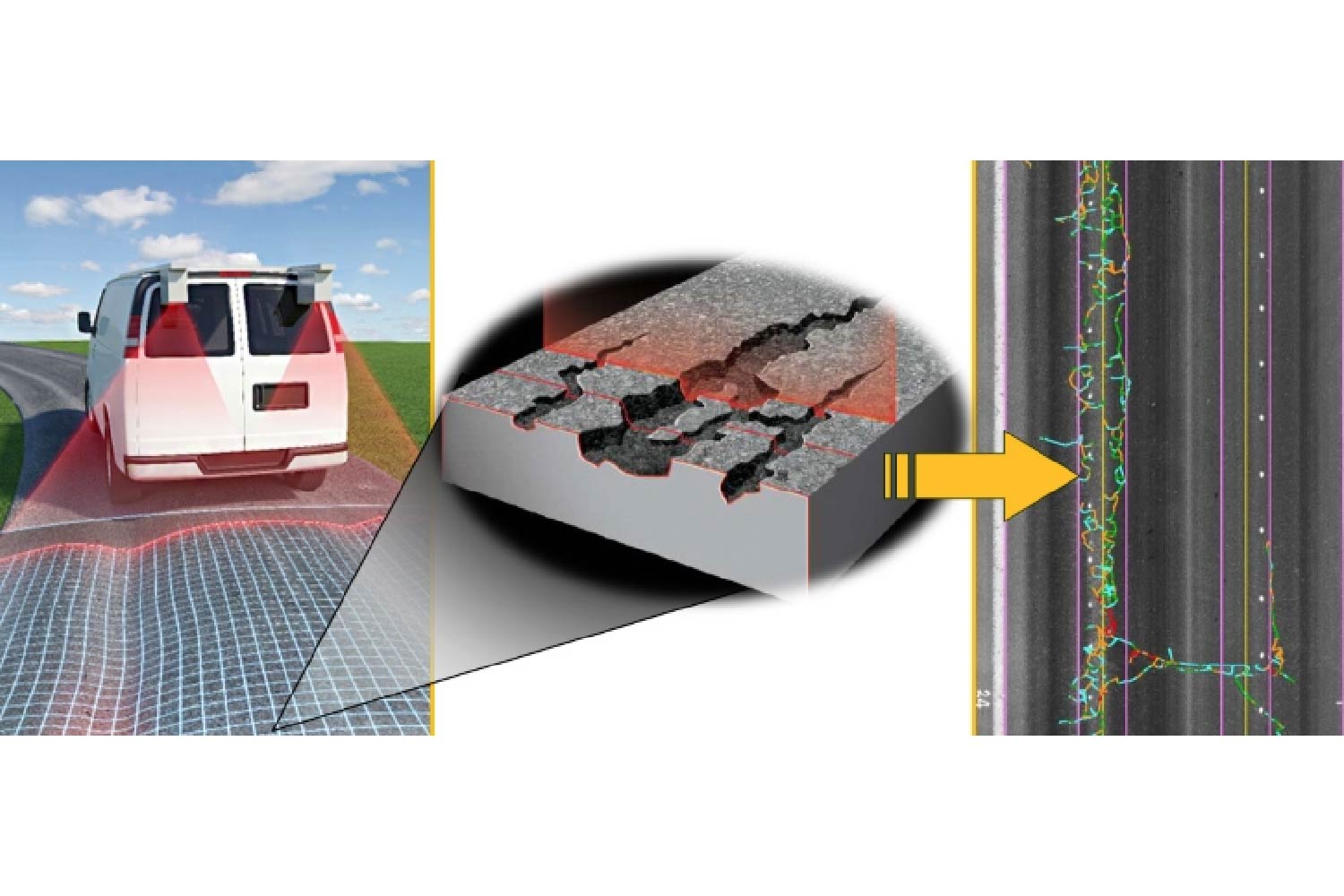

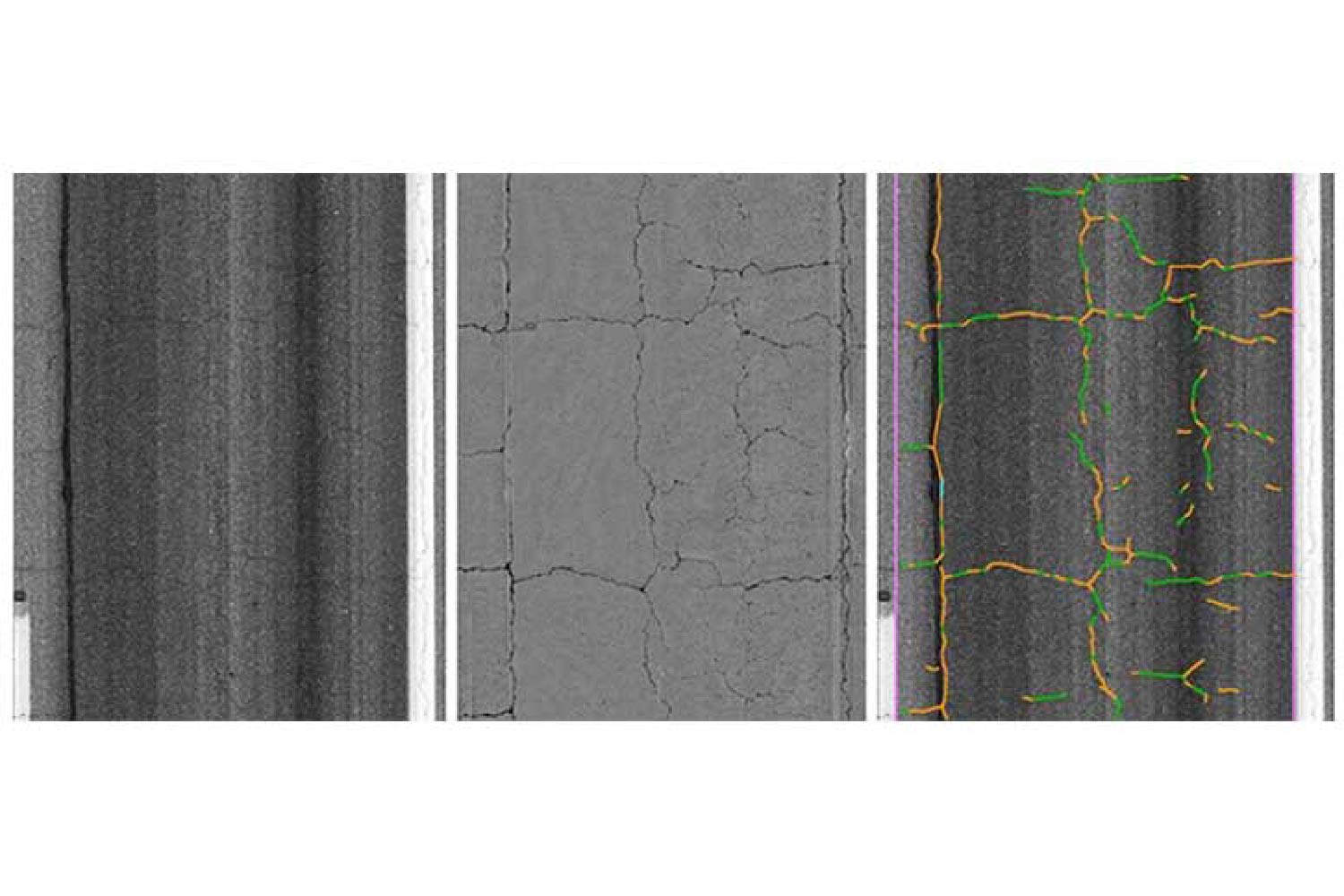

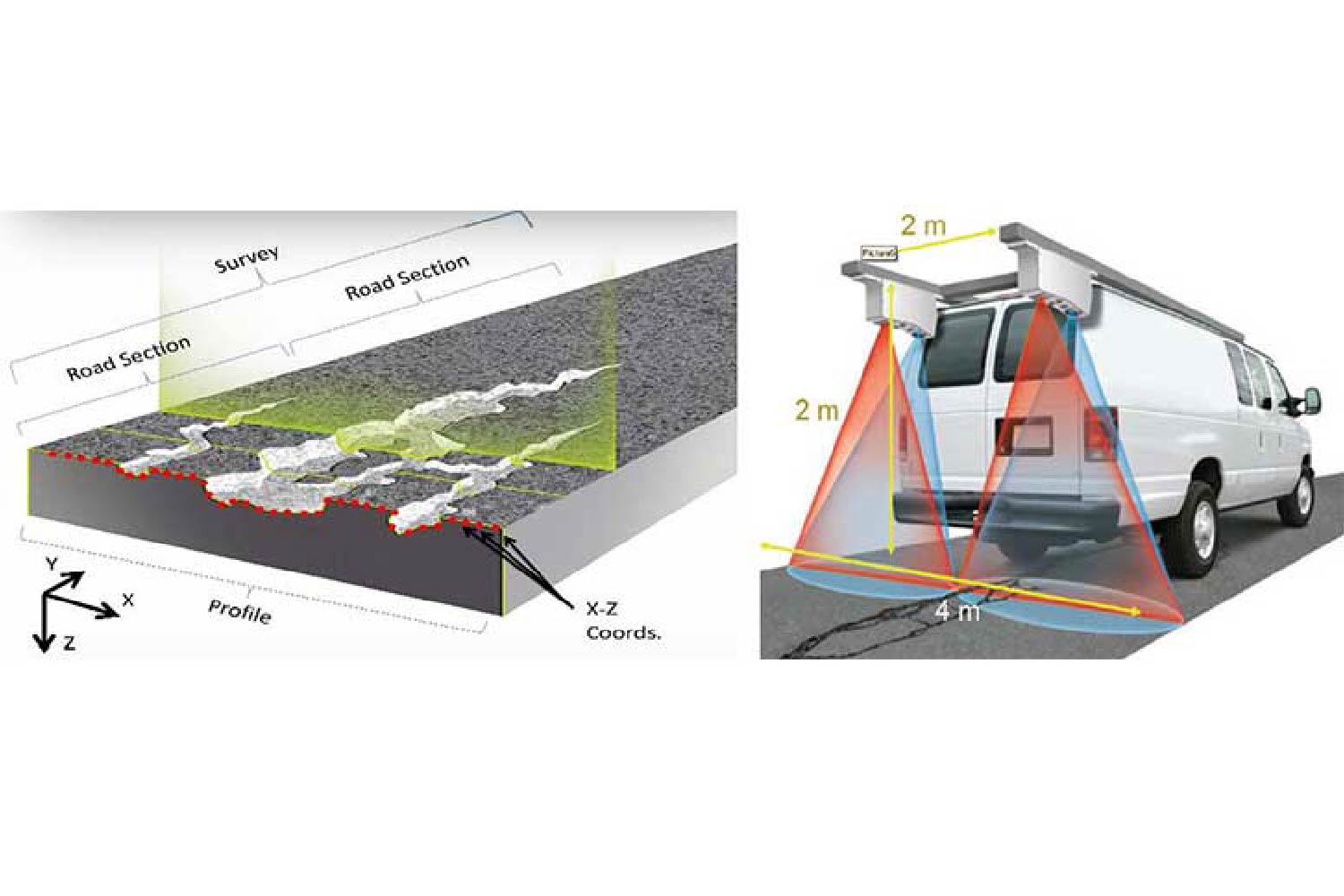

Using sophisticated LCMS (Laser Crack Measurement System) laser cameras, surface defects are detected and 3D profiles of the pavement collected. This process is automatic, fast, objective and scientific, with no impact on regular vehicle traffic.

ZUM55-rilevamento-dati-icp-3
ZUM55-rilevamento-dati-icp-2
ZUM55-rilevamento-dati-icp-1

Map version

Four parameters for assessing the criticalities of pavements
  • ROUGHNESS
  • MACROTEXTURE
  • RUTTING
  • SURVEY

ROUGHNESS INDEX

IRI (International Roughness Index)

Measures the comfort perceived by those travelling along the infrastructure.

ZUM55-rilevamento-dati-iri-3
ZUM55-rilevamento-dati-iri-2
ZUM55-rilevamento-dati-iri-1

MACROTEXTURE

ETD (Estimated Texture Depht)

The set of granular asperities that characterise the road surface: these affect surface water drainage, rolling noise and grip.

ZUM55-rilevamento-dati-macrotessitura-1
ZUM55-rilevamento-dati-macrotessitura-2

RUTTING

RD (Rut Depht)

Indicates the depth of the rut: takes the form of a longitudinal depression in the area affected by the wheel tracks.

ZUM55-rilevamento-dati-ormaiamento-1
ZUM55-rilevamento-dati-ormaiamento-2

PAVEMENT CONDITIONS

PCI

Using sophisticated LCMS (Laser Crack Measurement System) laser cameras, surface defects are detected and 3D profiles of the pavement collected. This process is automatic, fast, objective and scientific, with no impact on regular vehicle traffic.

ZUM55-rilevamento-dati-icp-3
ZUM55-rilevamento-dati-icp-2
ZUM55-rilevamento-dati-icp-1

PCI parameter

To calculate the PCI – Pavement Condition Index as many as 19 distinct types of deterioration are identified on the basis of type, extent and severity using data collected with high-performance machines.

The ASTM D6433-11 standard defines PCI as:

"a measure of the present condition of the pavement based on the distress observed on the surface of the pavement, which also indicates the structural integrity and surface operational condition. The PCI cannot measure structural capacity nor does it provide direct measurement of skid resistance or roughness. The PCI ranges from 0 to 100 with 0 being the worst possible condition and 100 being the best possible condition".
https://www.zum55.it/en/wp-content/uploads/sites/2/2024/03/table-PCI.jpg

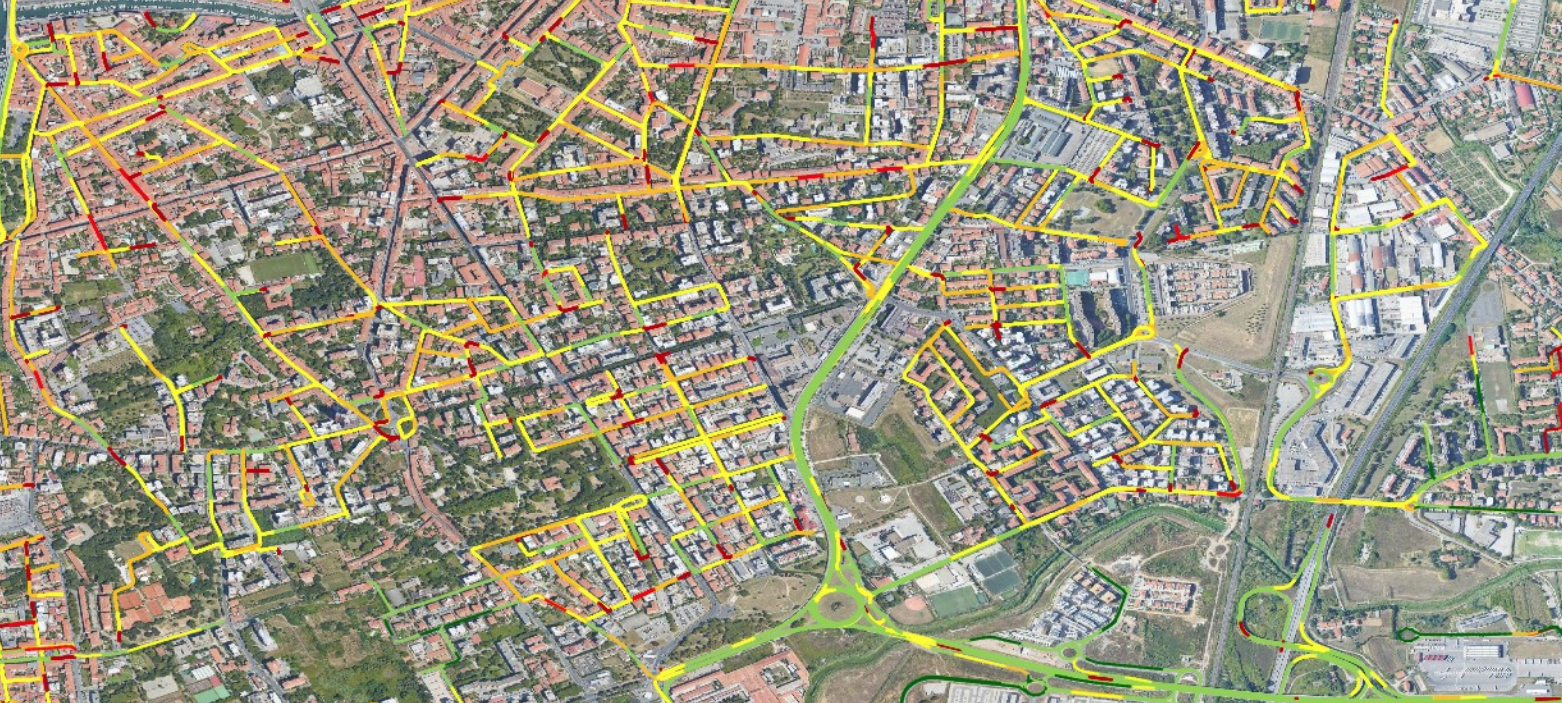

https://www.zum55.it/en/wp-content/uploads/sites/2/2022/07/Phacelia-Zum55-software-Indagini-sulle-condizioni-della-pavimentazione-stradale-per-la-Pubblica-Amministrazione.png

PCI parameter

To calculate the PCI – Pavement Condition Index as many as 19 distinct types of deterioration are identified on the basis of type, extent and severity using data collected with high-performance machines.

The ASTM D6433-11 standard defines PCI as:

"a measure of the present condition of the pavement based on the distress observed on the surface of the pavement, which also indicates the structural integrity and surface operational condition. The PCI cannot measure structural capacity nor does it provide direct measurement of skid resistance or roughness. The PCI ranges from 0 to 100 with 0 being the worst possible condition and 100 being the best possible condition".
https://www.zum55.it/en/wp-content/uploads/sites/2/2024/03/table-PCI.jpg
https://www.zum55.it/en/wp-content/uploads/sites/2/2022/07/Phacelia-Zum55-software-Indagini-sulle-condizioni-della-pavimentazione-stradale-per-la-Pubblica-Amministrazione.png
https://www.zum55.it/en/wp-content/uploads/sites/2/2024/01/indagine-fotografica-1280x2248.jpg

Georeferenced photographic survey

High-resolution photographs

Access to the photo gallery supports the surveys carried out on road pavements by providing data and indications that are also useful for additional maintenance operations, such as those regarding signage.

Photographs of infrastructure

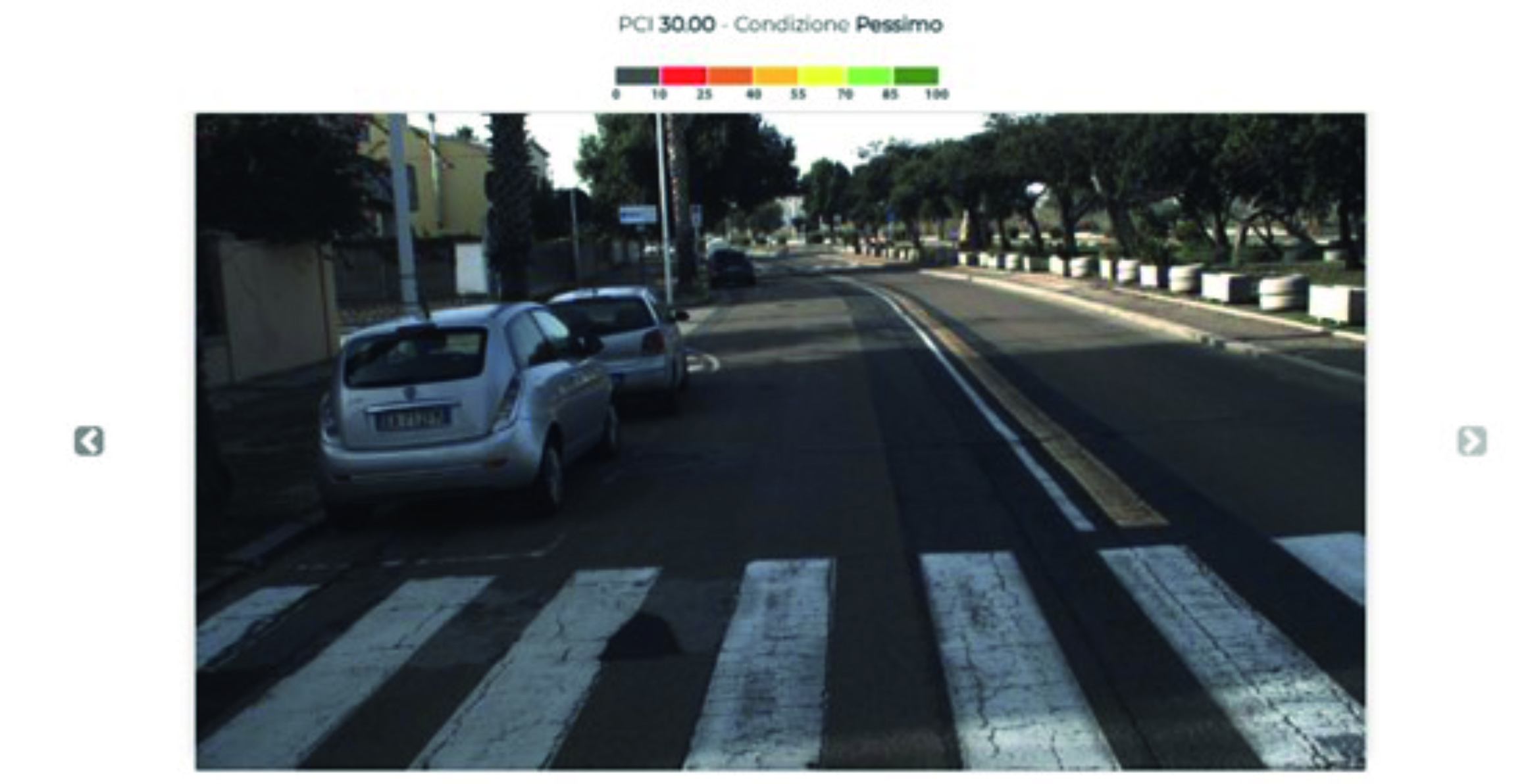

Acquired during scanning thanks to a front camera mounted on the windscreen of the vehicle.
LCMS photographs of the pavement

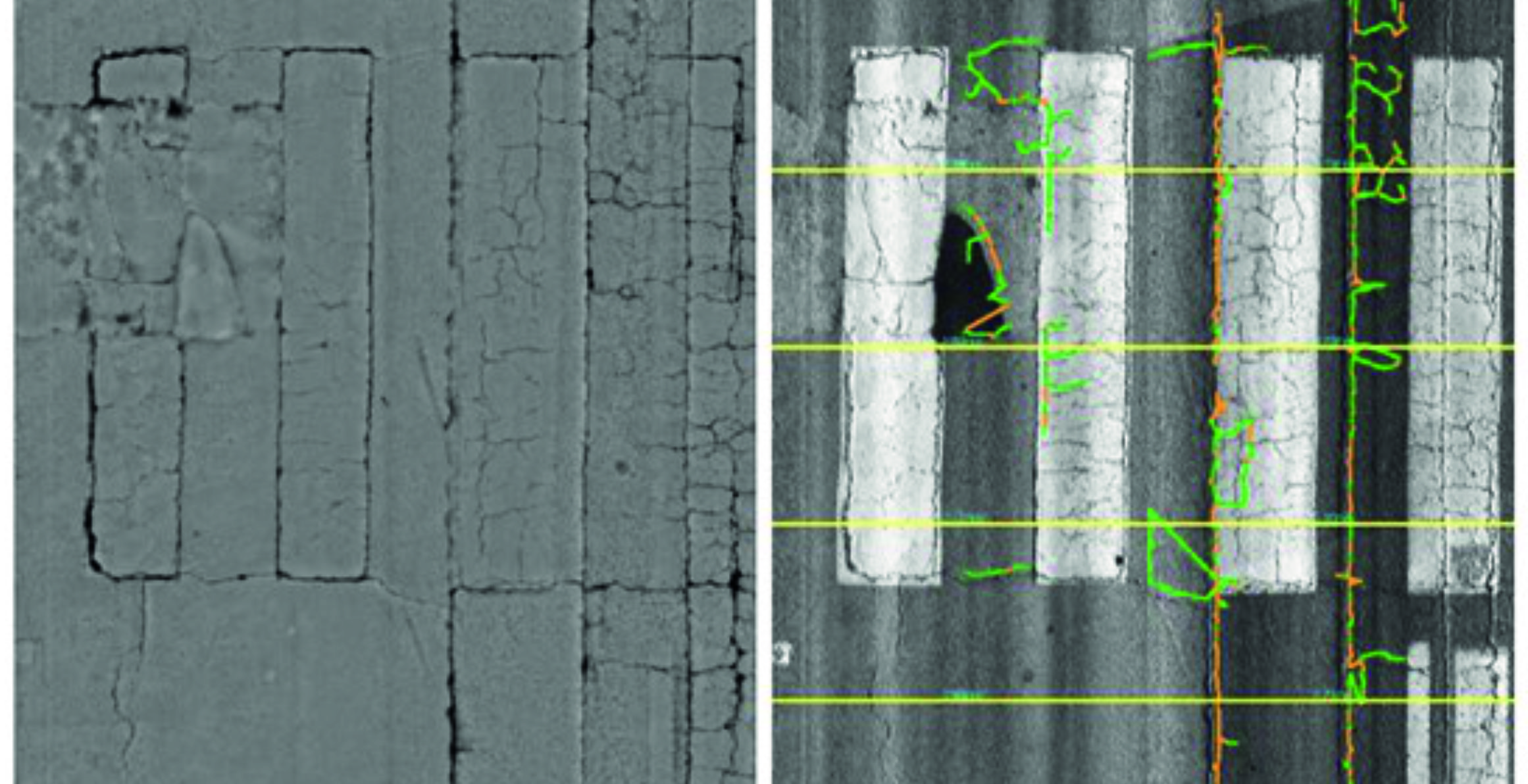

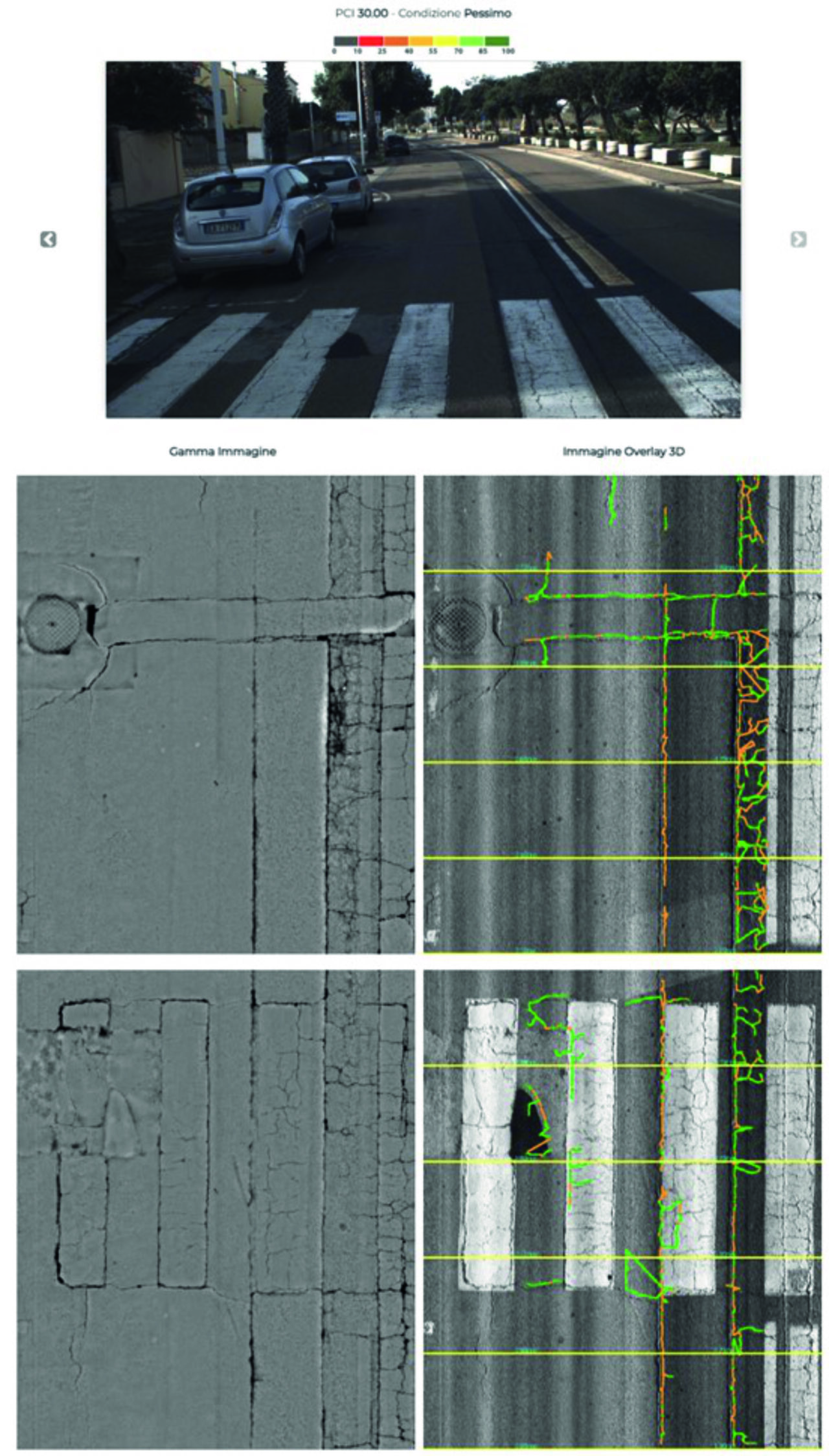

Processed in Range (greyscale) and 3D Overlay to highlight distress.

Georeferenced photographic survey

High-resolution photographs

Access to the photo gallery supports the surveys carried out on road pavements by providing data and indications that are also useful for additional maintenance operations, such as those regarding signage.

Photographs of infrastructure
Acquired during scanning thanks to a front camera mounted on the windscreen of the vehicle.
LCMS photographs of the pavement
Processed in Range (greyscale) and 3D Overlay to highlight distress.
https://www.zum55.it/en/wp-content/uploads/sites/2/2024/01/indagine-fotografica_1.jpg
https://www.zum55.it/en/wp-content/uploads/sites/2/2024/01/indagine-fotografica_2.jpg

Shared space version

Additional services

Compared to the map version, the version available in the database provides access to additional functions and information on the characteristics of the pavement and other assets and elements of the same infrastructure, helping the Managing Authority to produce its overall assessment and make informed and correct choices regarding both maintenance and the safety of users.

Pavement bearing capacity
Structural surveys (FWD, HWD, TSD)
Retroreflection of road surface markings
Surveys with the “RETROTEK” retroreflectometer to define RL
Survey of vertical signage
Definition of vertical signage assets and their level of efficiency
Subsurface surveys with 3D radar technology
Vehicle traffic analysis
Pavement thicknesses
Georadar surveys to define layer thicknesses
Survey of road surface markings
Definition of road marking assets and their level of efficiency
Laser scanner surveys
Accident analysis
Specialist consultancy
Road pavement sizing: mix design, road safety review, road safety audit

Shared space version

Additional services

Compared to the map version, the version available in the database provides access to additional functions and information on the characteristics of the pavement and other assets and elements of the same infrastructure, helping the Managing Authority to produce its overall assessment and make informed and correct choices regarding both maintenance and the safety of users.

Pavement bearing capacity
Structural surveys (FWD, HWD, TSD)
Retroreflection of road surface markings
Surveys with the “RETROTEK” retroreflectometer to define RL
Survey of vertical signage
Definition of vertical signage assets and their level of efficiency
Subsurface surveys with 3D radar technology
Vehicle traffic analysis
Pavement thicknesses
Georadar surveys to define layer thicknesses
Survey of road surface markings
Definition of road marking assets and their level of efficiency
Laser scanner surveys
Accident analysis
Specialist consultancy
Road pavement sizing: mix design, road safety review, road safety audit

Discover ZUM55The algorithm for road maintenance

Discover ZUM55The algorithm for road maintenance
