Every road is different and needs careful ad hoc maintenance. Greater awareness in the
management of road
infrastructure maintenance contracts

ZUM55 enables technical offices to improve their efficiency by providing objective and scientific data.

Technical offices encounter many difficulties when planning and managing maintenance activities, all of which related to:

  • Lack of a predictive database enabling project managers to correctly identify expenditure priorities
  • Lack of specific technical civil engineering updates
  • Lack of information on specific updates on innovations in materials and their management
It identifies
What and how many interventions are needed
It indicates
Maintenance cost estimates

With ZUM55, investments are more efficient, maintenance is improved and disputes are avoided.

ZUM55 helps to prioritise the work agenda on the basis of objective and scientific surveys, streamlining the available budget by making targeted interventions in the exact area requiring maintenance.

Every road is different and needs careful ad hoc maintenance.Greater awareness
in the management of
road infrastructure

maintenance contracts

ZUM55 enables
technical offices
to improve their efficiency
by providing objective
and scientific data.
https://www.zum55.it/en/wp-content/uploads/sites/2/2022/07/ZUM55-150.png

Technical offices encounter many difficulties when planning and managing maintenance activities, all of which related to:

  • Lack of a predictive database enabling project managers to correctly identify expenditure priorities
  • Lack of specific technical civil engineering updates
  • Lack of information on specific updates on innovations in materials and their management

With ZUM55, investments are more efficient, maintenance is improved and disputes are avoided.

ZUM55 helps to prioritise the work agenda on the basis of objective and scientific surveys, streamlining the available budget by making targeted interventions in the exact area requiring maintenance
It identifies
What and how many interventions are needed
It indicates
Maintenance cost estimates

Solutions
for the streets of Italy
(and beyond)

The algorithm originates from a study of the Road Surfaces Catalogue compiled by the CNR (National Research Council): it knows and proposes the entire range of infrastructural works, starting from the typical traffic and environmental conditions of each area.

CASE STUDY

"It is the possibility of planning public works using an easily accessible scientific method"
Raffaele Latrofa, Councillor for Public Works for the city of Pisa

The city of Pisa has already adopted the instrument: read the article in La Nazione and Il Tirreno.

https://www.zum55.it/en/wp-content/uploads/sites/2/2022/07/phacelia-zum55-software-scanner-strade-logo-citta-pisa-160x160.png

Maintenance and management of road surfaces zum55 is a point of reference for technical officesZUM55 is a point of reference
for technical offices

A fully digital and integrated platform for the management of all road infrastructure assets.

Careful planning considers the present and projects into the future, accurately defining the necessary investment plan. It is a guarantee of success for all those involved in the tender.

Clear cost savings in both surveying and maintenanceMore functionality
Longer useful life of infrastructure

012345678900123456789001234567890

km/h

Maximum scanning speed
01234567890

days

To scan the urban area of Pisa
01234567890                     ,0123456789001234567890

€/mq

Reduced surveying costs

Clear cost savings in both surveying and maintenanceMore functionality
Longer useful life of infrastructure

012345678900123456789001234567890

km/h

Maximum scanning speed
01234567890

days

To scan the urban area of Pisa
01234567890                     ,0123456789001234567890

€/mq

Reduced surveying costs

The integrated platform

Criticalities. Interventions. Investments.
  • SURVEY
  • STATE
  • INTERVENTIONS
  • COSTS
  • FORECASTS

SURVEYING ROAD SECTION

Based on the data collected from the scan and the characteristics of the pavement, the integrated platform assigns the most appropriate maintenance intervention to the analysed section of road. It therefore divides the entire surveyed infrastructure network into “minimum sections of intervention”.

  • Length: approx. 50 metres
  • Width: customisable according to road type

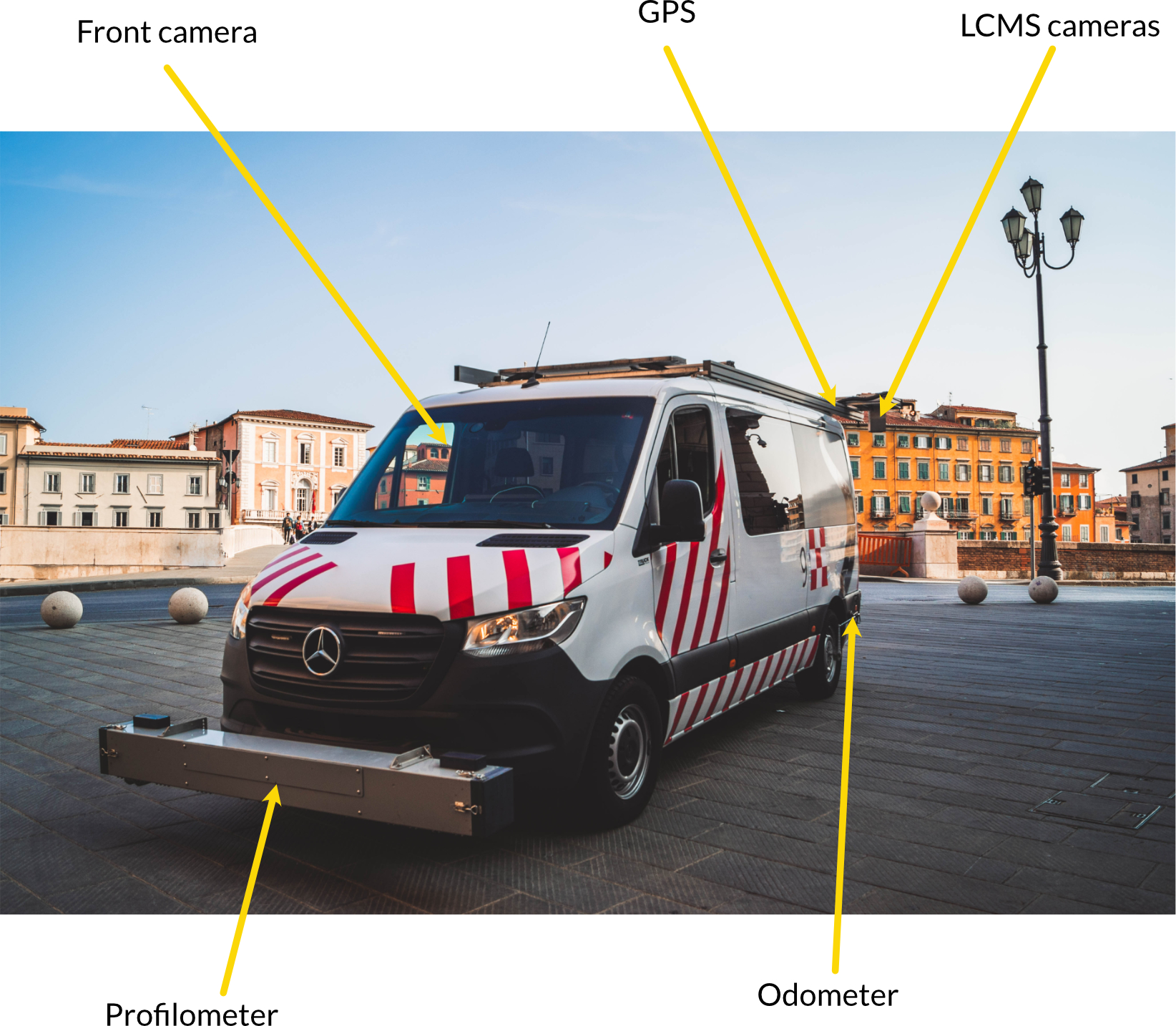

specs MFV

PAVEMENT STATE OF HEALTH

Each section surveyed will have its own “state of health” summary, an estimate of the level of degradation that takes account of functional parameters and surface deterioration present on the road pavement: longitudinal and transverse cracks, crocodile cracking, block cracking, potholes, etc

  • IRI – International Roughness Index
  • ETD – Estimated Texture Depth
  • RD – Rut Depth
  • PCI – Pavement Condition Index

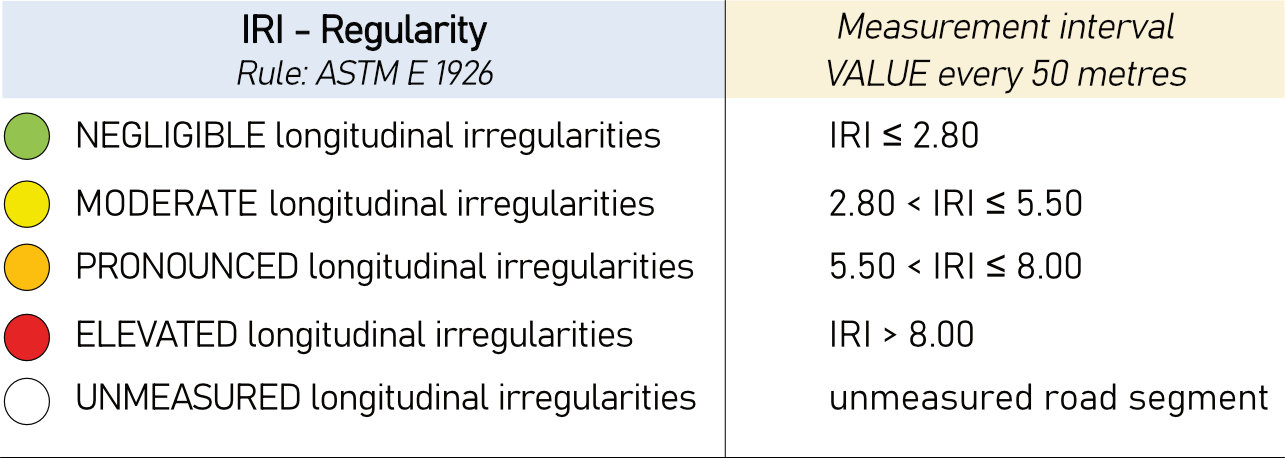

table IRI

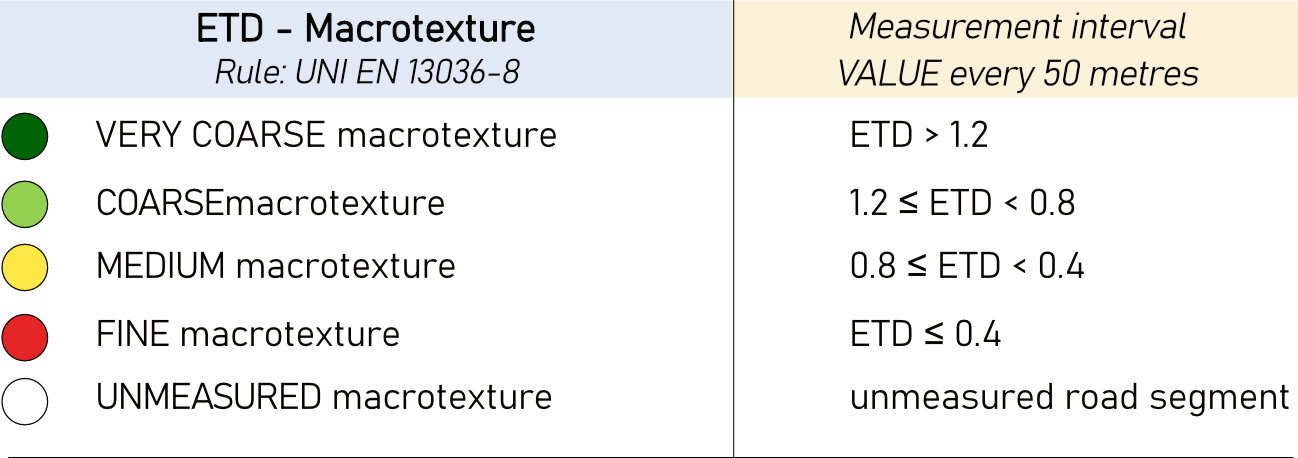

table ETD

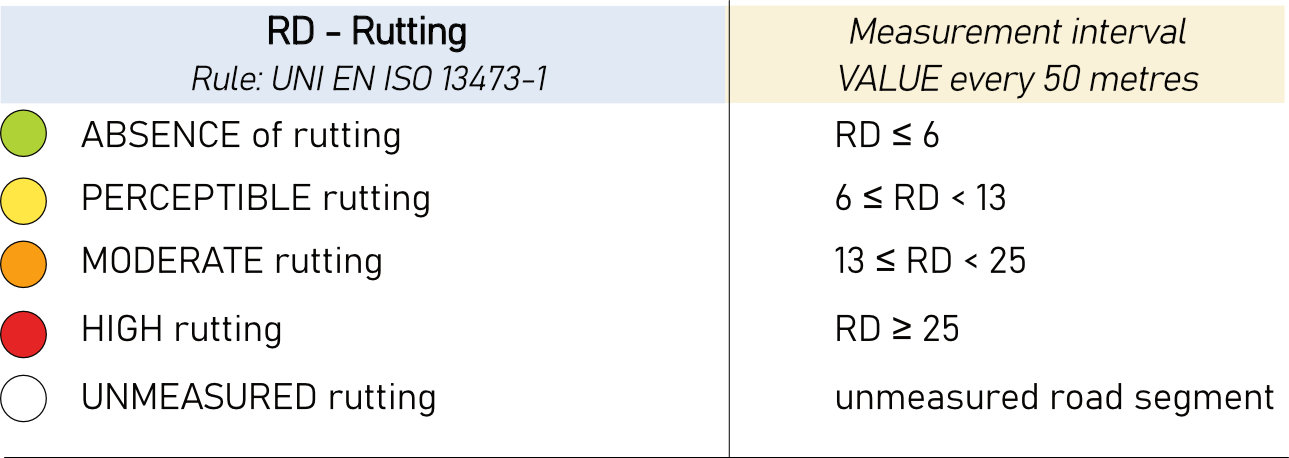

table RD
table PCI

WHICH MAINTENANCE ACTIVITIES

Through the evaluation of the characteristic parameters of the pavement, appropriate maintenance activities are assigned to each section.

  • Estimation of maintenance requirements.
  • Selection of the maintenance package also taking into account the specific needs and criticalities of the Managing Authority.

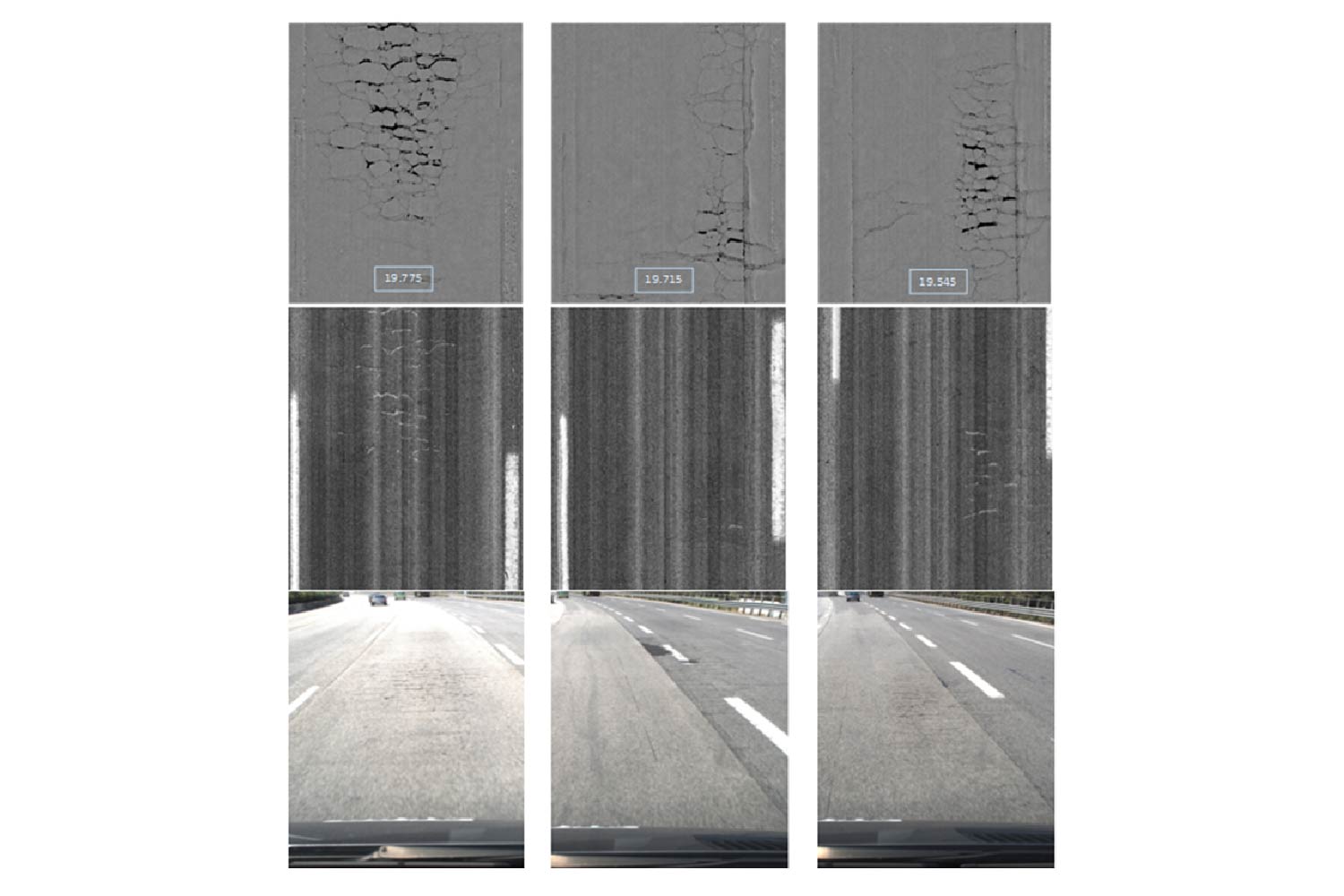

ZUM55-rilevamento-dati-9

MAINTENANCE COST ESTIMATE

By logging in, it is possible to select the sections of interest and get an estimate of the cost of the necessary maintenance work.

  • Costs will be based on the specific Price List and agreed on with the Managing Authority.
  • Possibility of quickly and intuitively downloading reports on the characteristics of the pavement and maintenance cost estimates.

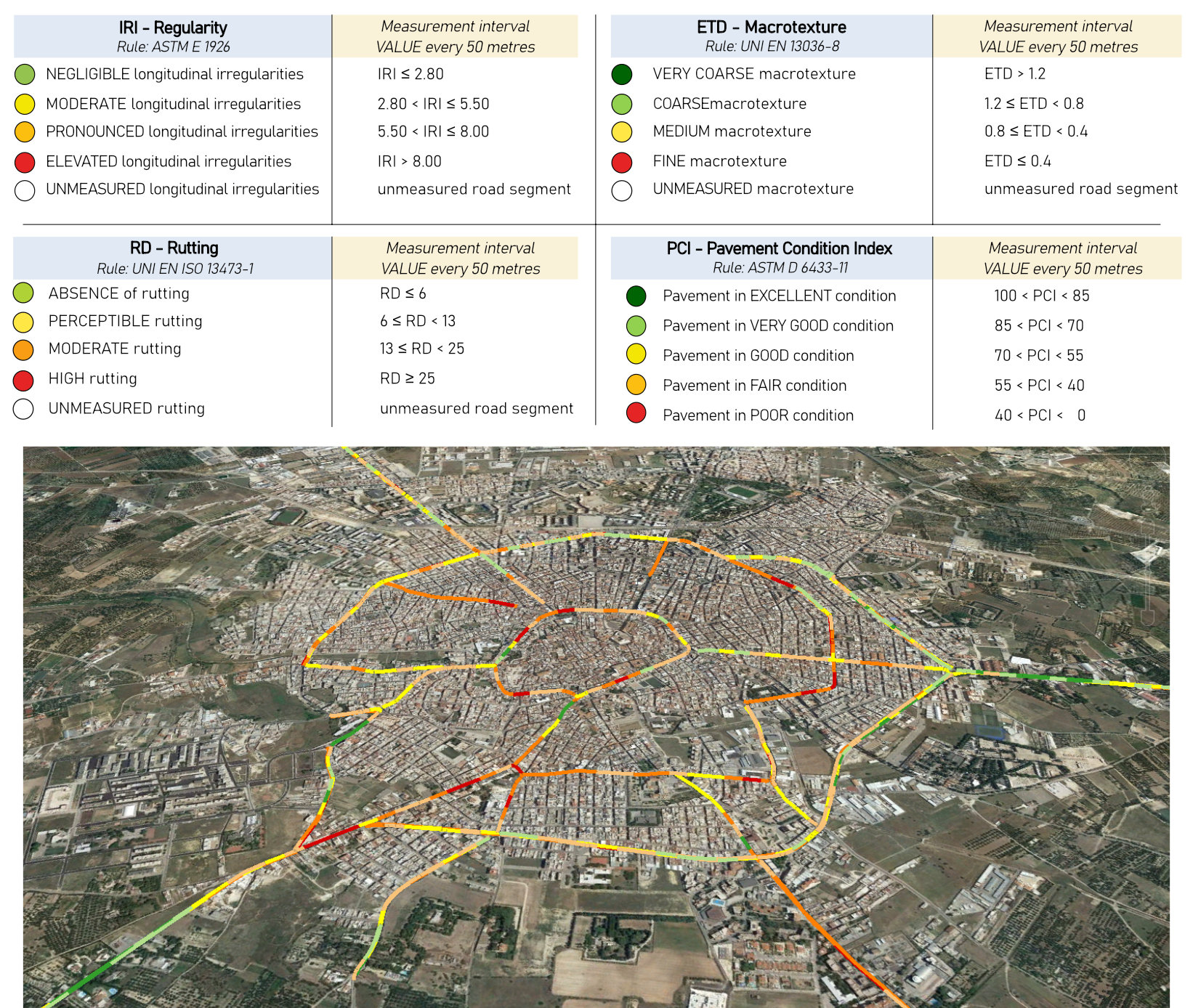

table of cost

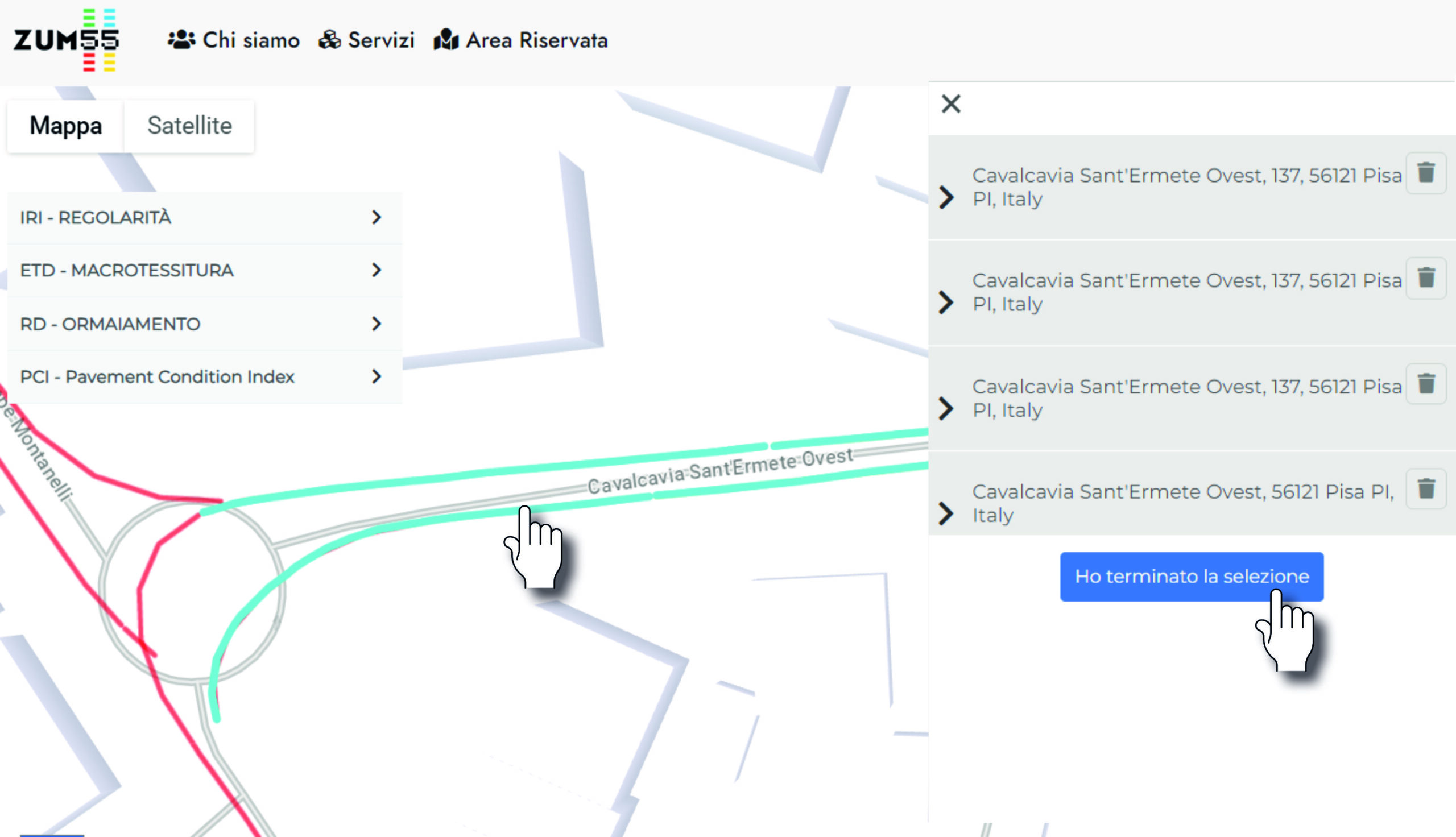

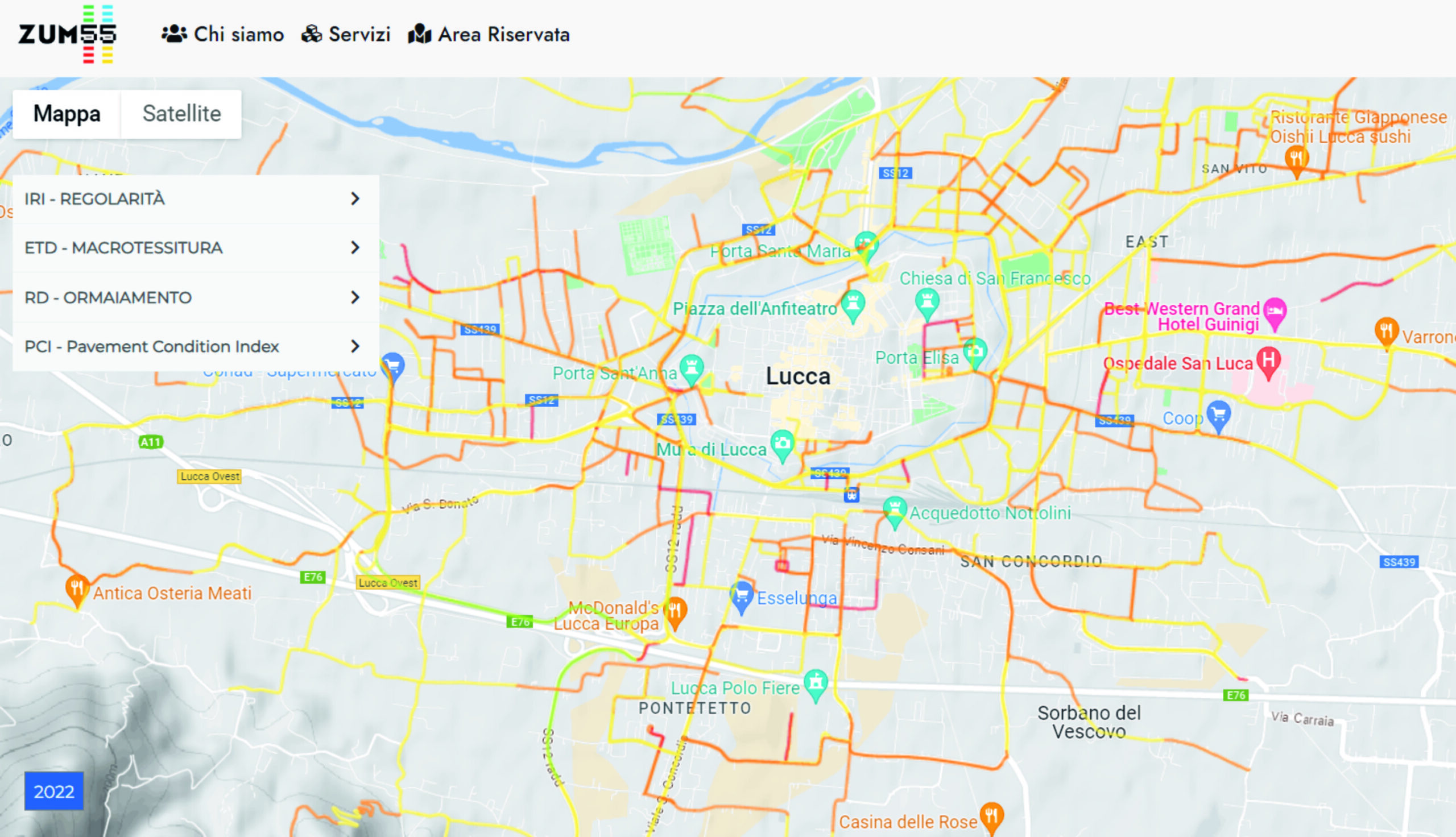

tabella costi_2
tabella costi_3

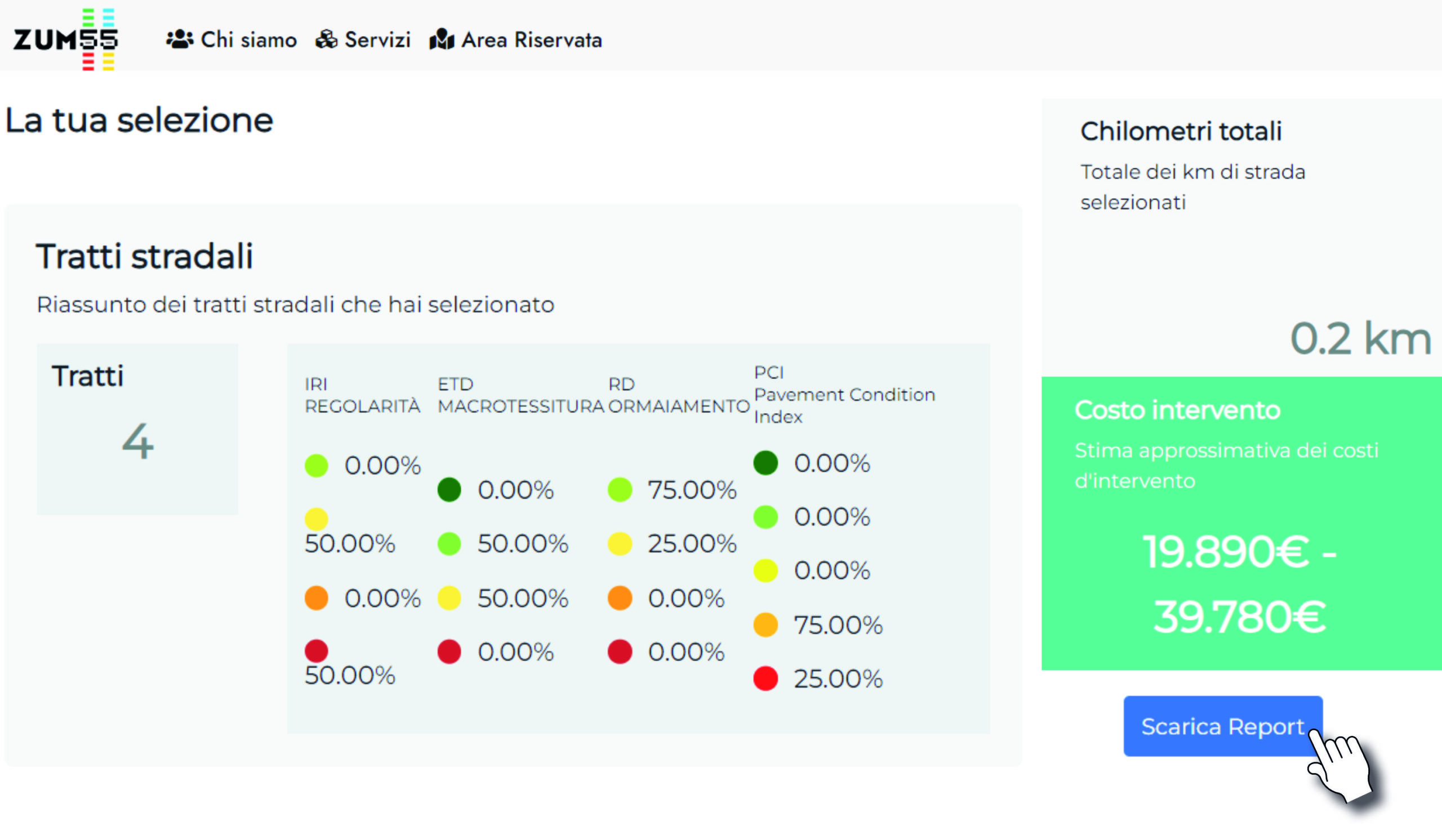

tabella costi_4

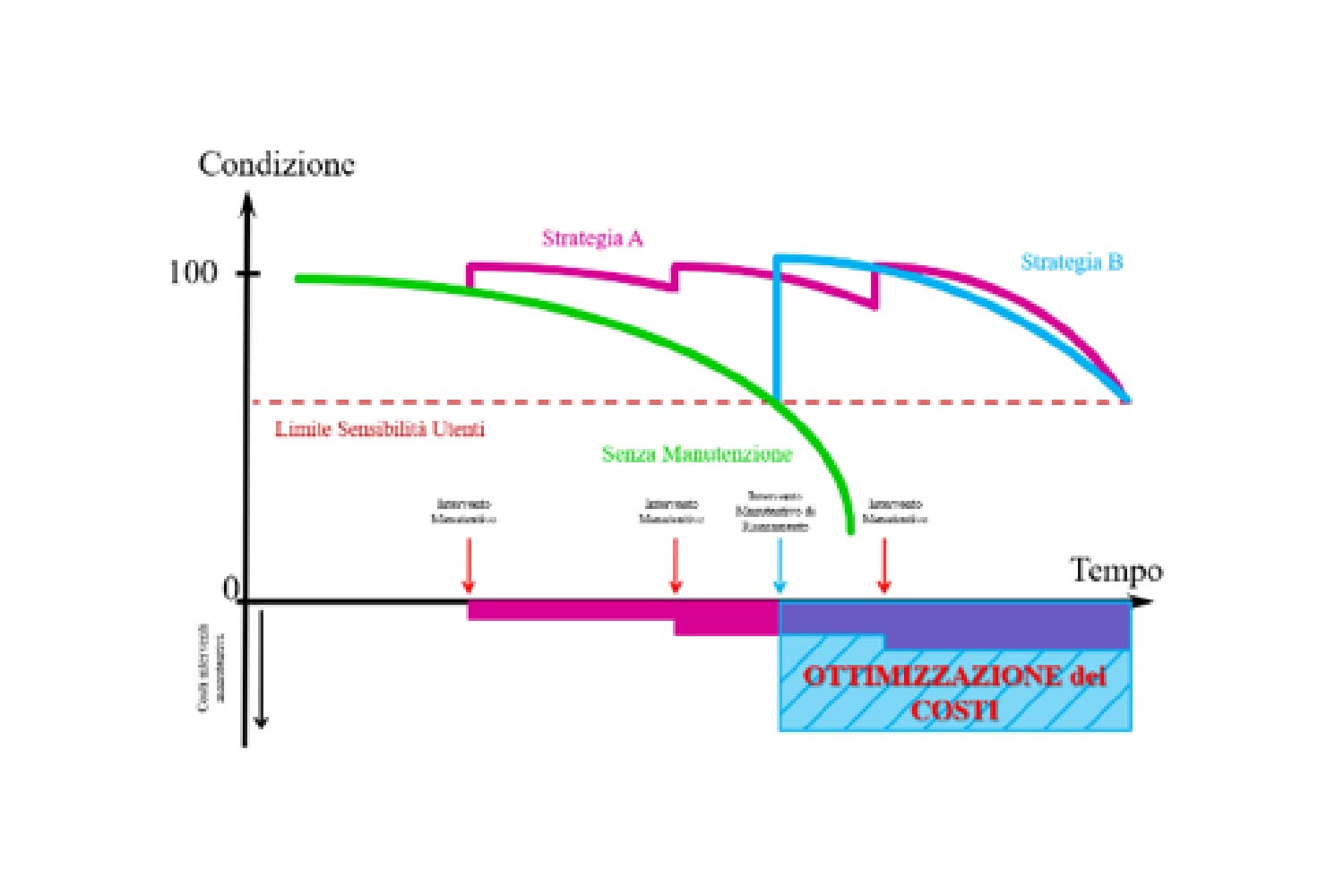

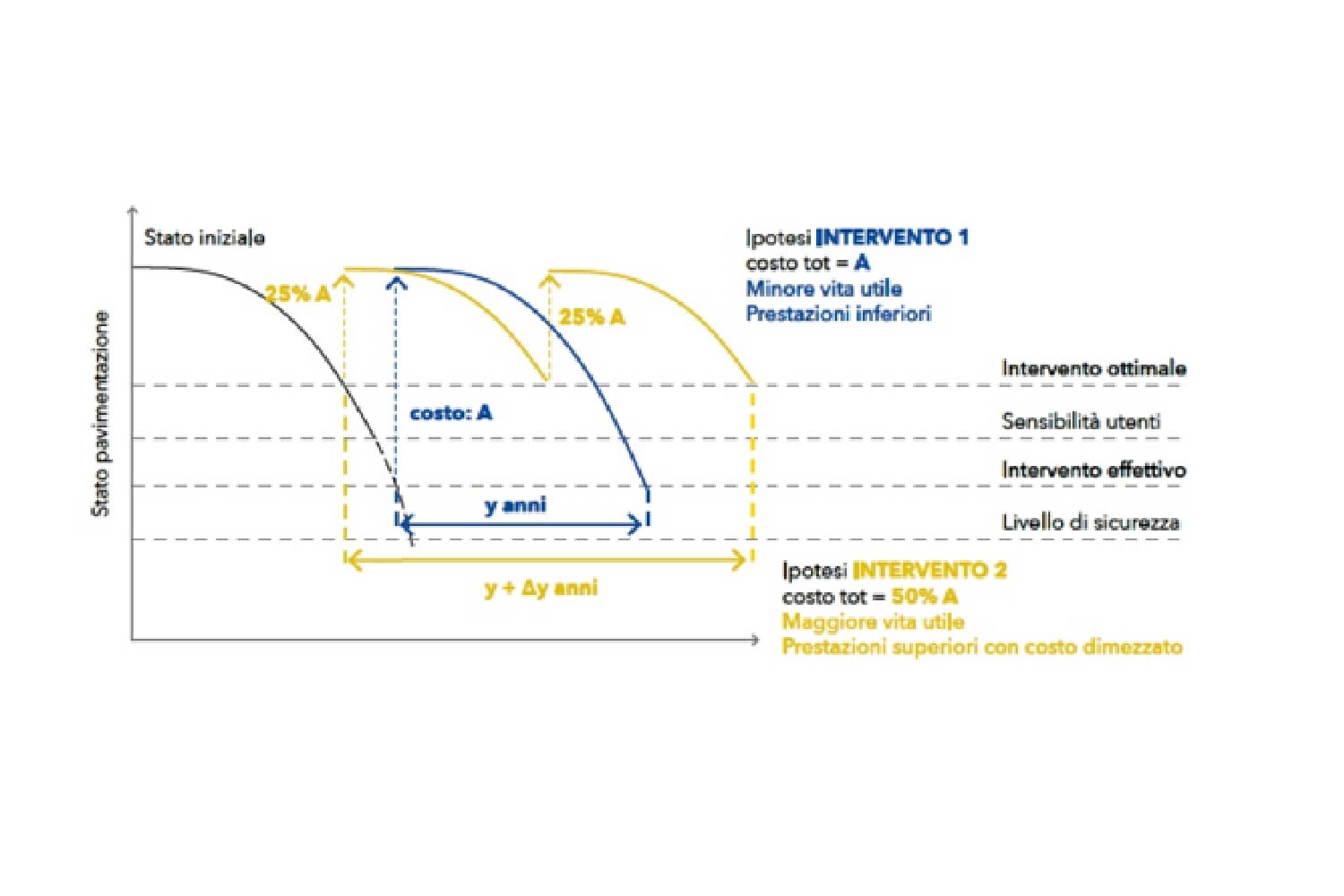

MONITORING AND FORECASTING

The systematic, scientific and objective monitoring of roads makes it possible to predict how they will degrade and therefore to plan a detailed schedule of maintenance work on specific stretches.

The data, especially that related to the cost estimate ranges, is an important source of additional information that can be used to support requests for funding and the planning of the entire public works sector.

Important additional data and functionalities for the evaluation and overall monitoring of other infrastructure assets and their maintenance needs are available on the platform.

ZUM55-rilevamento-dati-7
ZUM55-rilevamento-dati-8

Data quality

Surveys based on international standards
Innovative processing method
Quick visualisation
Facilitated data accessibility

Quick turnaround times

Rapid scanning, processing, transferral and interpretation of data
Until now offices have processed machine data by filling out Excel sheets by hand: the data takes months to interpret and the results are always subject to errors.

Using the same data, with ZUM55 we have built an algorithm that feeds artificial intelligence: within a few days of the survey, the integrated platform processes all the information, even in the presence of huge amounts of data!
Less disruption
ZUM55 processes data using a survey scanner: no construction sites or test cores. It shortens timeframes by releasing the sureties activated for the tender earlier.

Quick turnaround times

Rapid scanning, processing, transferral and interpretation of data
Until now offices have processed machine data by filling out Excel sheets by hand: the data takes months to interpret and the results are always subject to errors.

Using the same data, with ZUM55 we have built an algorithm that feeds artificial intelligence: within a few days of the survey, the integrated platform processes all the information, even in the presence of huge amounts of data!
Less disruption
ZUM55 processes data using a survey scanner: no construction sites or test cores. It shortens timeframes by releasing the sureties activated for the tender earlier.

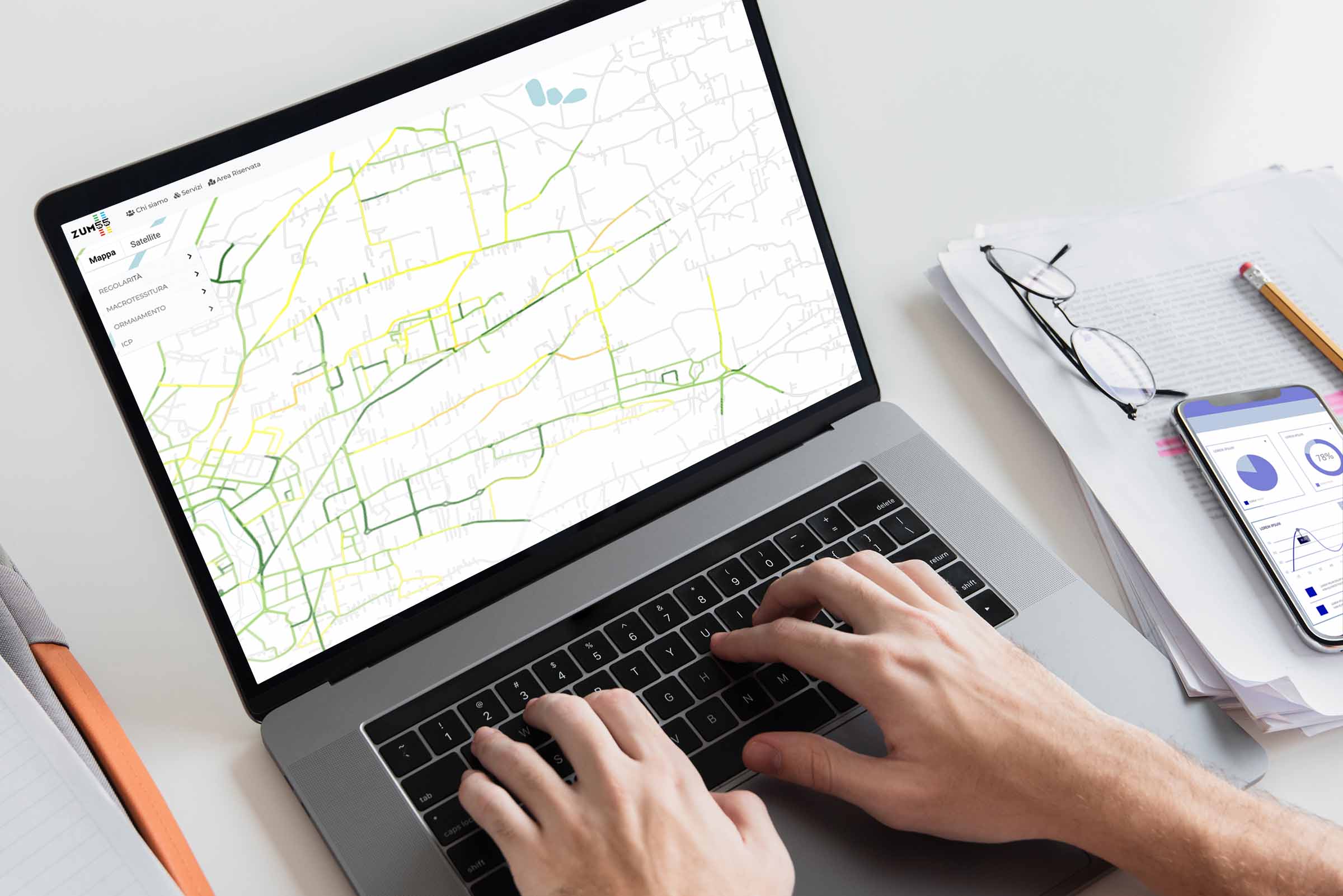

https://www.zum55.it/en/wp-content/uploads/sites/2/2022/07/ZUM55-mappe-computer.jpg

Technology

Digitisation, scientific rigour and punctuality

ZUM55 is a server architecture managed on cloud infrastructure. The core of the system is developed in Python, to feed the Database and perform analyses on large quantities of data: it is scalable, both horizontally and vertically.

A database
on road infrastructure conditions

ZUM55 carries out objective and scientific investigations using high-performance instrumentation.

The data collected by the integrated platform highlights the status of the network under management as well as the list of maintenance operations and when these are required.

Technology

Digitisation, scientific rigour and punctuality

ZUM55 is a server architecture managed on cloud infrastructure. The core of the system is developed in Python, to feed the Database and perform analyses on large quantities of data: it is scalable, both horizontally and vertically.

A database
on road infrastructure conditions

ZUM55 carries out objective and scientific investigations using high-performance instrumentation.

The data collected by the integrated platform highlights the status of the network under management as well as the list of maintenance operations and when these are required.
